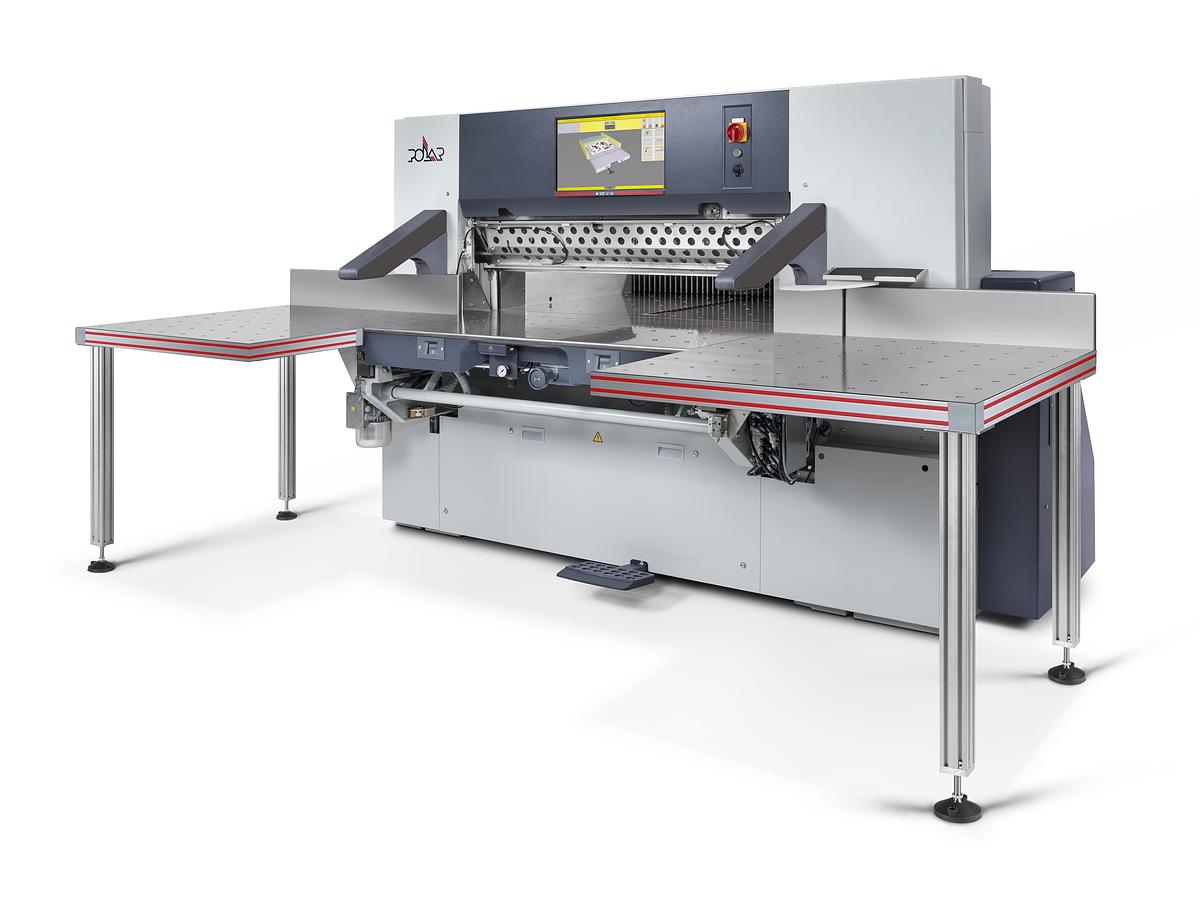

2025 Polar N115 PLUS

Air table Resopal

Left 100 x 100 cm

Right 100 x 100 cm

Air corners

Wide cover plate (standard), narrow cover plate (40 mm) incl. control

Technical data:

Cutting width: 1,150 mm

Insertion depth: 1,150 mm

Maximum insertion height: 165 mm

Safety pressure: 30 daN

Pressure (min): 150 daN

Pressure (max): 4,500 daN

Saddle speed (return): up to 300 mm/s

Knife speed: 45 cycles/min

Residual cut (automatic, without cover plate): 25 mm

Residual cut (automatic, with cover plate): 95 mm

Display: 18.5" capacitive touchscreen

Automatic programming: graphical, with intuitive user interface

Positioning accuracy: 1/100 mm thanks to DPS system

Knife change: fast and precise with OptiKnife system

Available at short notice
